उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| प्रोडक्ट का नाम: | पॉली कार्बोनेट छत शीट | रंग: | स्वनिर्धारित |
|---|---|---|---|
| परत: | दो परत | उपयुक्त तापमान: | -40℃ - +120℃ |
| विशेषता: | पर्यावरण अनुकूल | संरचना: | आर-संरचना |
| प्रमुखता देना: | 25mm polycarbonate roofing sheets,25mm polycarbonate plastic roof panel,multi wall polycarbonate plastic roof panel |
||

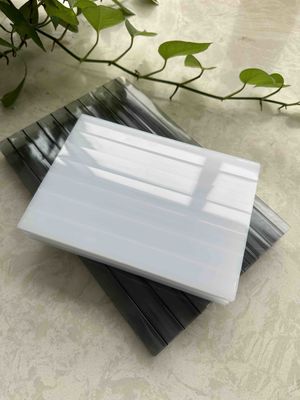

Multiwall Polycarbonate sheets for truck aerodynamic barrier white PC sheet, Multiwall Polycarbonate Sheets Construction Material Eco Friendly.

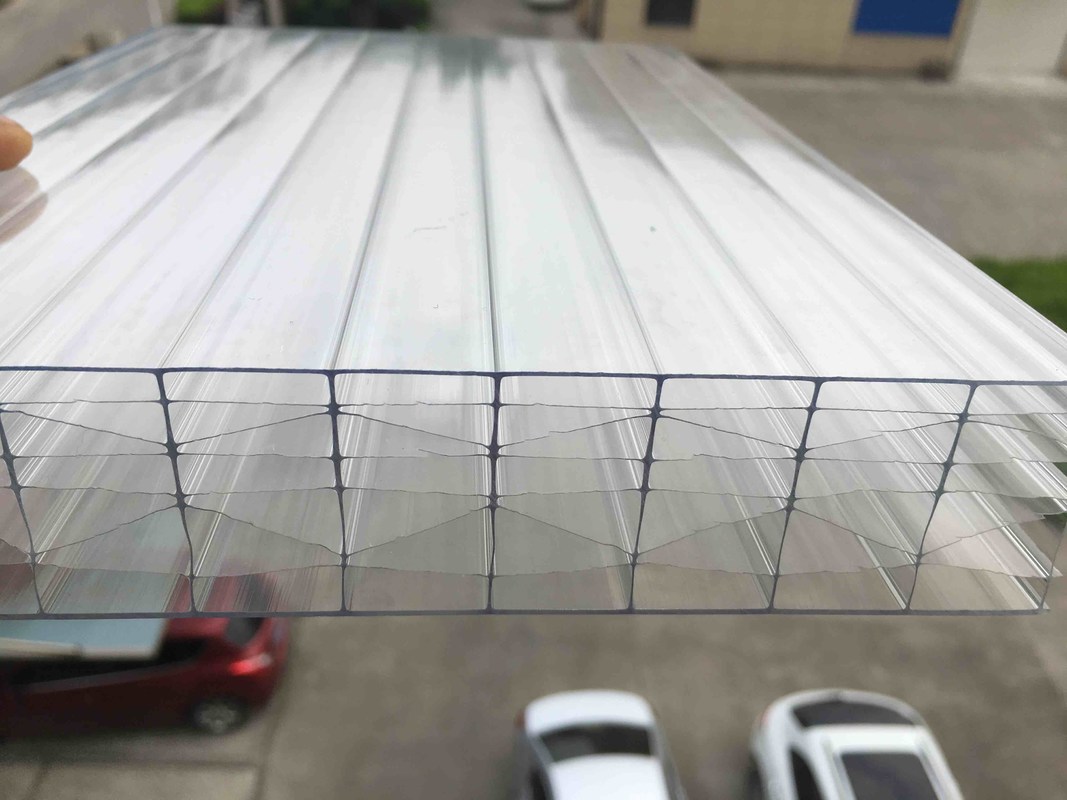

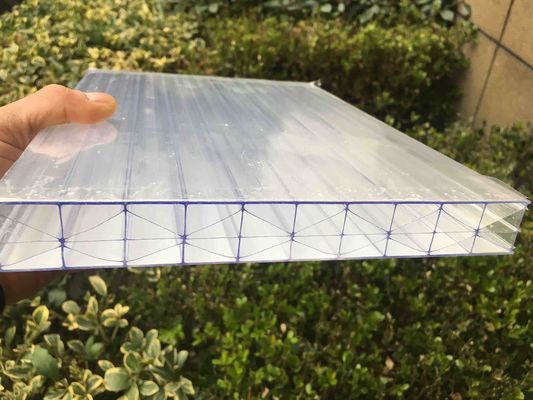

we are using 100% virgin imported material, front side is with 50um thickness of anti-UV layer, and we will give our client with 10 years quality guarantee. As for this 25mm thickness polycarbonate hollow sheets with 5-wall X-structure, diagonal supports are added on the basis of the rectangular section, so it improves the stiffness and the pressure-bearing performance of the sheets,meanwhile it plays a positive role in the lateral stability of the panel. So the characteristics of this kinds sheets are not only light weight and thermal insulation, but also with excellent impact strength.
| Structure | X-Diamond 5-wall |
| Thickness | 25mm |
| Weight | 3.6kg/m2 |
| Max Width | 2100mm |
| Length | could be as ordered |
| Light Transmission (Clear) | 50% |
| U-value | 1.51 W/㎡·K |
| Temperature Range | -50℃ ~ +120 ℃ |
| Tensile Strength | 62 Mpa |
| Linear thermal expansion | 10-3 /℃ |
| Elongation at break | >80% |
| Linear thermal Expansion | 0.065mm/m℃ |
Detail size of PC sheets for aerodynamic barrier of trucks:
